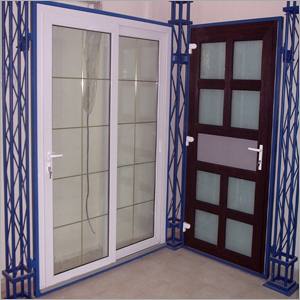

UPVC Doors

UPVC Doors
UPVC Doors
Product Code : UTE 02
Brand Name : UNIQUE TRADING
Product Description

Ever since the journey began long ago, we have continued to grow in this line as a manufacturer and supplier of UPVC Doors. These doors are sound proof which are suitable to be installed in offices and corporate houses. Our offered doors are made with premium quality unplasticised polyvinyl chloride and additives that are helpful in producing sound extrusions. This range of doors is available for the customers in various sizes and dimensions, with an aim to meet with their variegated requirements.  Our UPVC Doors are provided at the patrons' specified place within the specified time frame.

Features

  • Seamless finishing
  • Excellent quality
  • Light weight

UPVC Doors
UPVC (Unplasticised Polyvinyl Chloride) and only those additives are used that are essential in producing sound extrusions in accordance to BIS 7413:1991. The main profiles shall be multi chambered, with a min. of three chambers. The central chamber, being for reinforcement, shall be fully sealed when main profiles are welded at joints. Water drainage path is in a separate chamber and does not affect the integrity of the central chamber.

All profiles are tested regularly for Heat reversion, Heat ageing, Impact resistance and weld factors in accordance to BS 7413:1991. Profiles are tested regularly for welded corner strength. The welded joint shall never fail below a stress level of 20 mpa. On whole, when properly manufactured, windows and doors shall confirm to and comply with the specifications and standards of BIS 6375 Part 1 and 2. All reinforcements for profiles shall be either MS sheet hot dip zinc coated of grade N in compliance with BS 2989 or extruded aluminium alloy grade 6063 or 6082 in compliance with BS 1474.

Technical Properties:
Profiles-

  • All Unique profiles are made from UPVC (Unplasticised Polyvinyl Chloride) and only those additives are used that are essential in producing sound extrusions in accordance to BIS 7413:1991.

  • The main profiles shall be multi chambered, with a min. of three chambers.

  • The central chamber, being for reinforcement, shall be fully sealed when main profiles are welded at joints.

  • Water drainage path is in a separate chamber and does not affect the integrity of the central chamber.

  • All Unique Profiles are tested regularly for Heat reversion, Heat ageing, Impact resistance and Weld factors in accordance to BS 7413:1991.

  • Unique profiles are tested regularly for welded corner strength. The welded joint shall never fail below a stress level of 20 mpa.

  • On whole, when properly manufactured, Unique windows and Doors shall confirm to and comply with the specifications and standards of BIS 6375 Part 1 & 2.

Reinforcement:

  • All reinforcements for Unique profiles shall be either MS sheet hot dip zinc coated of grade N in compliance with BS 2989 or extruded aluminium alloy grade 6063 or 6082 in compliance with BS 1474

  • All rft. Sections are designed individually for diff. Unique profiles for proper fit.

Glazing Gaskets & Weather strips:

  • All glazing gaskets and weather strips for unique windows and doors shall be of ethylene propylene diene monomer (EPDM) and shall confirm to BS4355 Part 1 and BS 7412: 1991.

Performance Values:

Heat Insulation-

  • Window: U Value of 1.4 – 1.8 W/m2k

  • Frame: U Value of 1.4 – 1.7 W/m2k

  • Glass:  U Value of .7 – 1.6 W/m2k.

Sound Insulation:

  • Sound insulation value of Rw 30dB – 42 dB with 5mm clear Single Glass.

Air Permeability of Joints:

  • Casement & Turn /Tilt Windows at 10Pa “a” value is less than 0.2m3/hm (10Pa) 2/3.

Water Tightness:

  • Turn n Tilt Single/Double pane windows with Mullion: up to 600 Pa no ingress of water to internal side

  • Turn n Tilt Double pane window with mullion /double pane door with separate mullion: Up to 300 Pa no ingress of water to internal side.

Functional Tests:

  • Wind resistance: Up to 2400 Pa

  • Gust of Wind (Security): 1000 Pa

  • Movements: 10000 cycles.

Frame Shutter Sizes:

  • Pl. refers to the Product Brochure – Softline 58 Casement & Softline 73 Sliding Doors.

Locking for Windows:

  • This may be Simple one point lock / Two Point of Multi Point depending on the requirements & Price acceptance of the customer.

H/W & Fittings:

  • Tech Specs: Confirms to the relevant BIS standard

  • Make: Roto, CHNHL or others as per the requirements.

Maximum width of Sash:

French Windows:

  • 750 mm with friction stays / 900mm with hinges.

French Doors:

  • 1250 mm width and 2250mm height.
