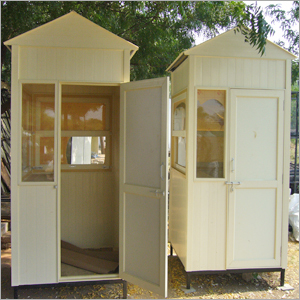

We are one of the trusted organizations indulged in manufacturing and supplying Prefab Huts. These huts are designed with complete care towards safety standards. The bottom track of these huts are crafted in U profile. While constructing these huts, we make use of high quality GI sheet 1.0 mm thickness and NCL bison panel. These huts are asbestos free that confirms to IS 14276 with 27mm gap. After the construction is completed these Prefab Huts are tested for quality by in-house invigilators and then only provided at the customers' stipulated place.
- Joined sandwich panels
- GI profile cement sheet
- Expended polystyrene core insulation
The walls are to be made of GI profile cement sheet and expended polystyrene core insulation. The bottom track is to be of 'U' profile made of GI sheet 1.0 mm thick fixed by suitable dash fastener on the cement platform. The wall panels of width 1.22m are of 2 Nos. of 10mm thick NCL bison panel, asbestos free confirming to IS 14276 with 27mm gap in between filled with 27 mm thick expended polystyrene core having bulk 16kg/cum duly bonded with poly vinyl acetate base bonding compound.
These sandwich panels are joined with one another duly fitted to the bottom track and the all round the edges of the panels are inserted with 'H' profile GI steel section 0.63mm thick held in between 'H' shaped G.I. 0.63mm thick profiles. The topsides will be concealed with 'U' shaped top track of 1.0mm thickness and corners ends of the walls. Heights of the wall are approx 10-0 or are kept as per customers requirements.
Made out of prepainted steel sheet 0.50mm thick fixed with suitable 'j' hook bolts and nuts. Sheet fixed suitably to steel box section purlin, trusses and column.
Columns, Trusses and Purlins:
Columns are made of standard suitable MS BOX as per design. Trusses are also made of steel box section of suitable size as top and bottom chards and as struts and purlins are made of steel box sections of suitable sizes of MS box sections complete as per our design. The trusses, column and purlins are designed as per recommended standards by qualified structural as per the span and design requirement.
Door and Window:
- M.S./ Aluminium door and windows will be provided.
- 3.2 mm thick decocil panel with thermocol pasted over it fixed and G.I. 'T' Grid.
- Internal OBD and exterior with roller finish. Steel section to be primered and applied enamel paint.
