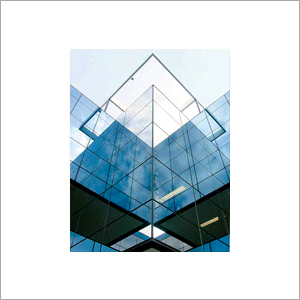

Curtain Glazing

Curtain Glazing
Curtain Glazing
Product Code : UTE 14
Brand Name : UNIQUE TRADING
Product Description

Crafted with perfection and quality materials, these Curtain Glazing are manufactured and supplied by us in different parts of country. These glazing are outer covering of a building, which ensures the outer walls are non-structural but still provide weather protection. Our offered glazing are designed using galvanized steel that is procured from the authentic vendors of the market. The Curtain Glazing is quality approved and then installed at the customers place.

Features:

  • Fine finishing
  • Precise designing
  • Durable quality

Curtain Glazing
"Seccolor" structural glazing fabricated from roll formed sections made of galvanized steel colour coated powder coated base steel as per IS 513 of 'D' quality, galvanized as per IS 277 with zinc of 120 gm/Sq.mtr with total coated thickness of 0.72mm. The glass holding section made of 304 grade stainless steel of 0.6mm thick. Galvanized steel sections are to be used as stiffeners inside the colour coated steel powder coated sections as per the design requirement.  Design calculations are made to suit wind pressures as given in IS 875.

Primer coat with epoxy primer of 5-7 microns thick, finish painted with a polyester paint of 12-16 microns thick and back coated with alkyd backer of 5-7 microns or powder coated with pure polyester powder upto 50-60 microns thick. The section should be of 50x100x0.72mm/33x58mmx0.72mm for frame verticals, 33x58mm for frame horizontals section for reinforcement should be of 48x98mm/31x56mm, glass holding section should be of 32.5x37mm for top and bottom grids, in between should be of 32.5x18mm. Reflective glass 4 - 6mm toughened untoughened may be used.
